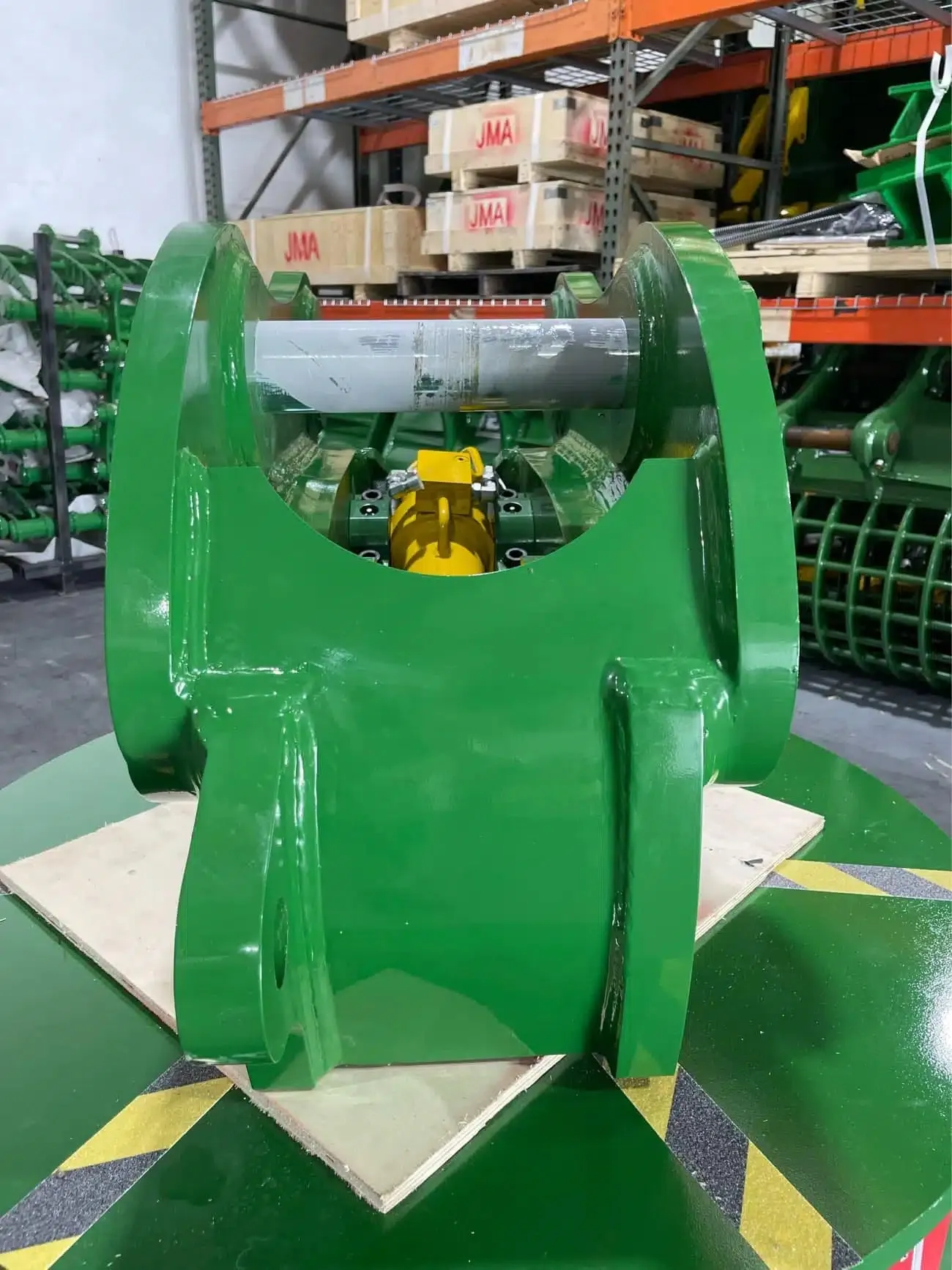

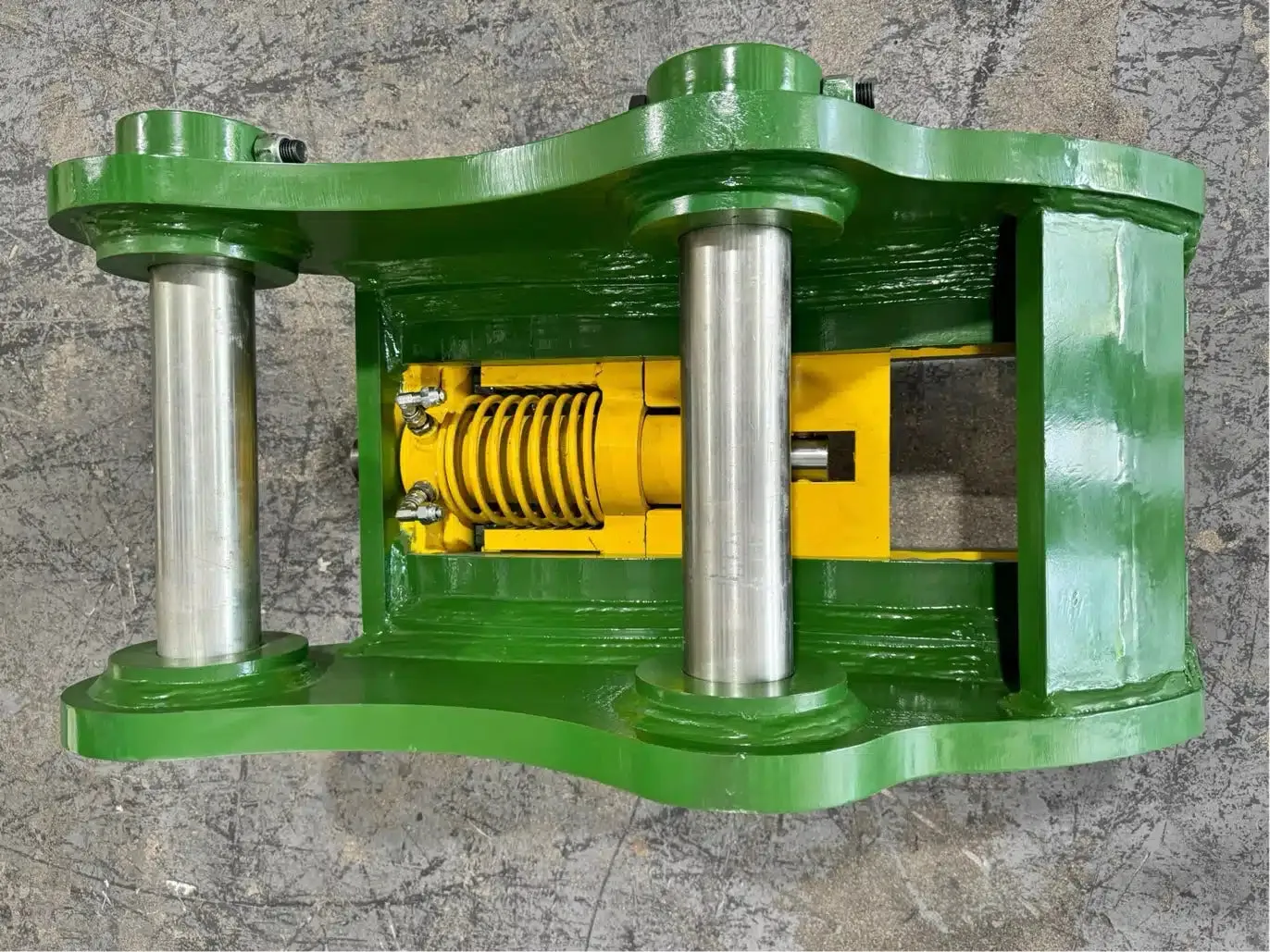

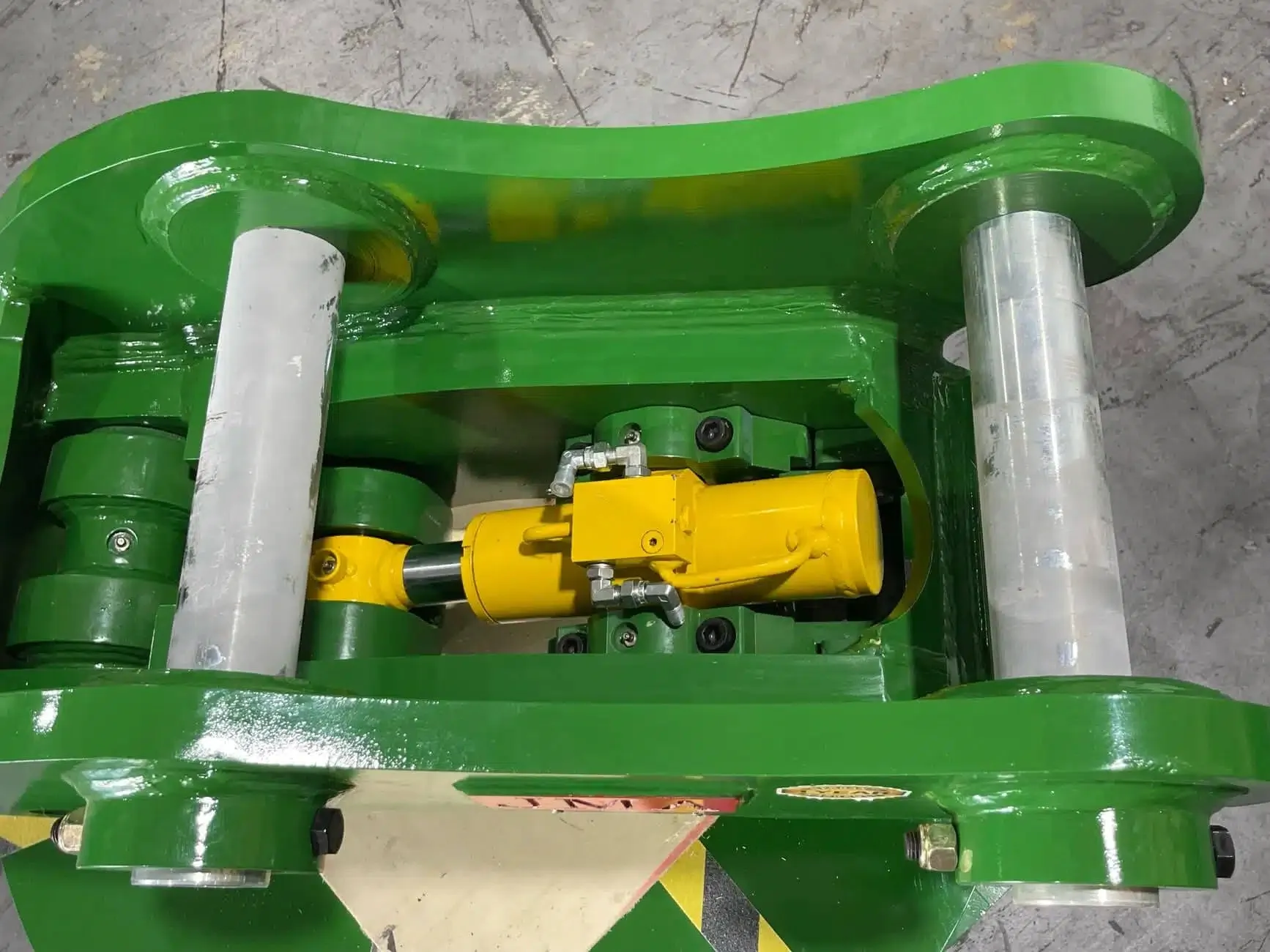

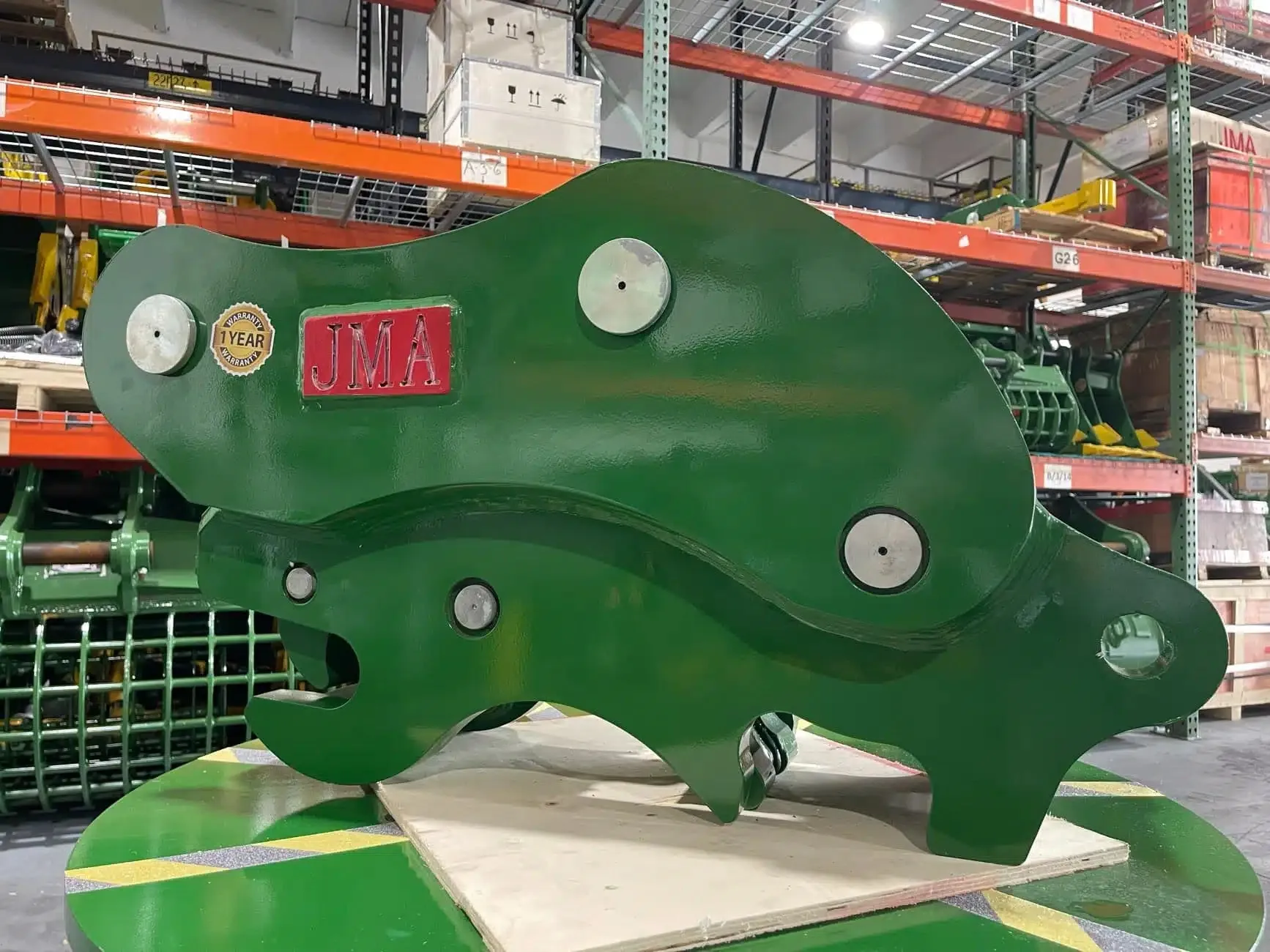

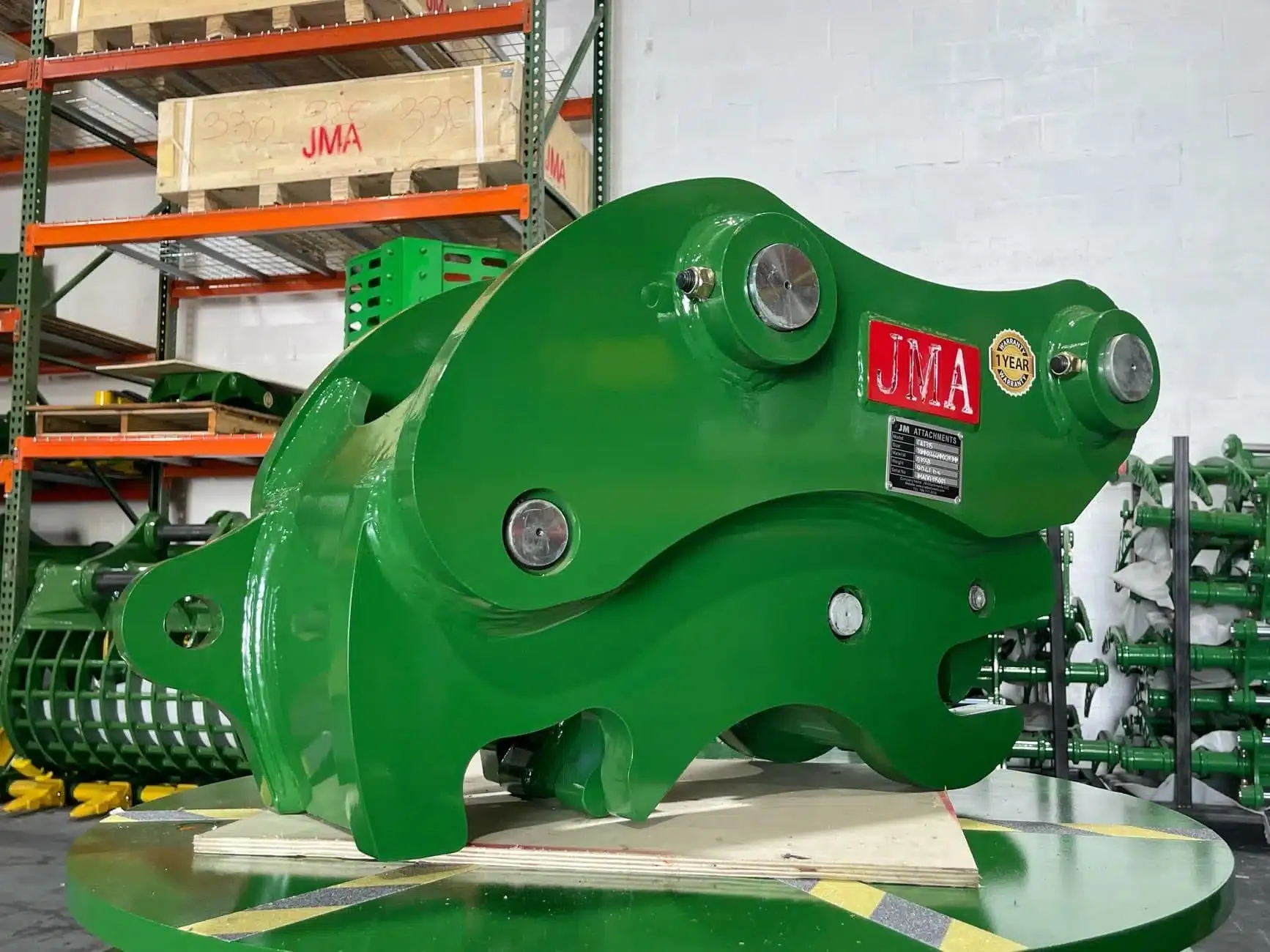

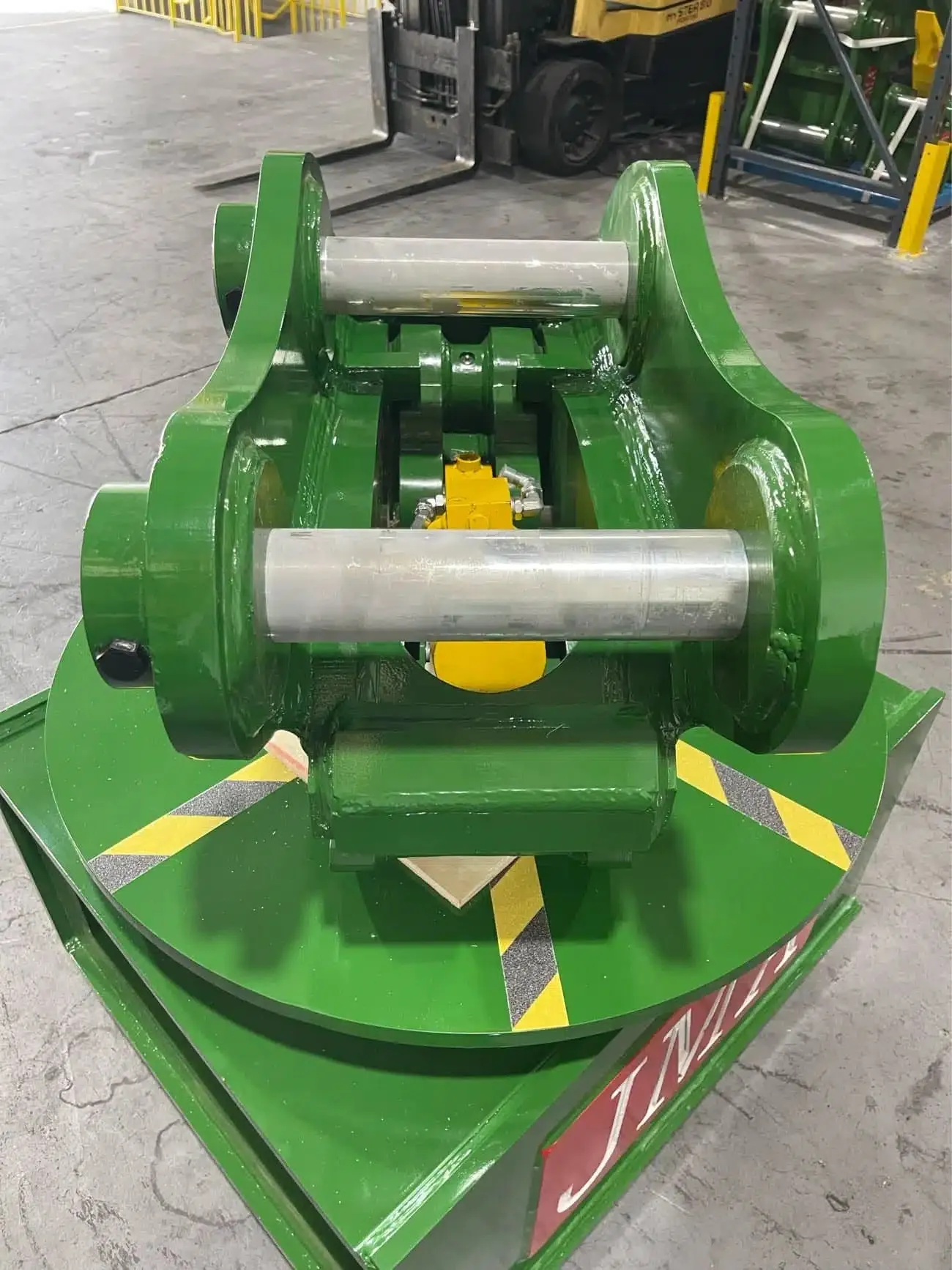

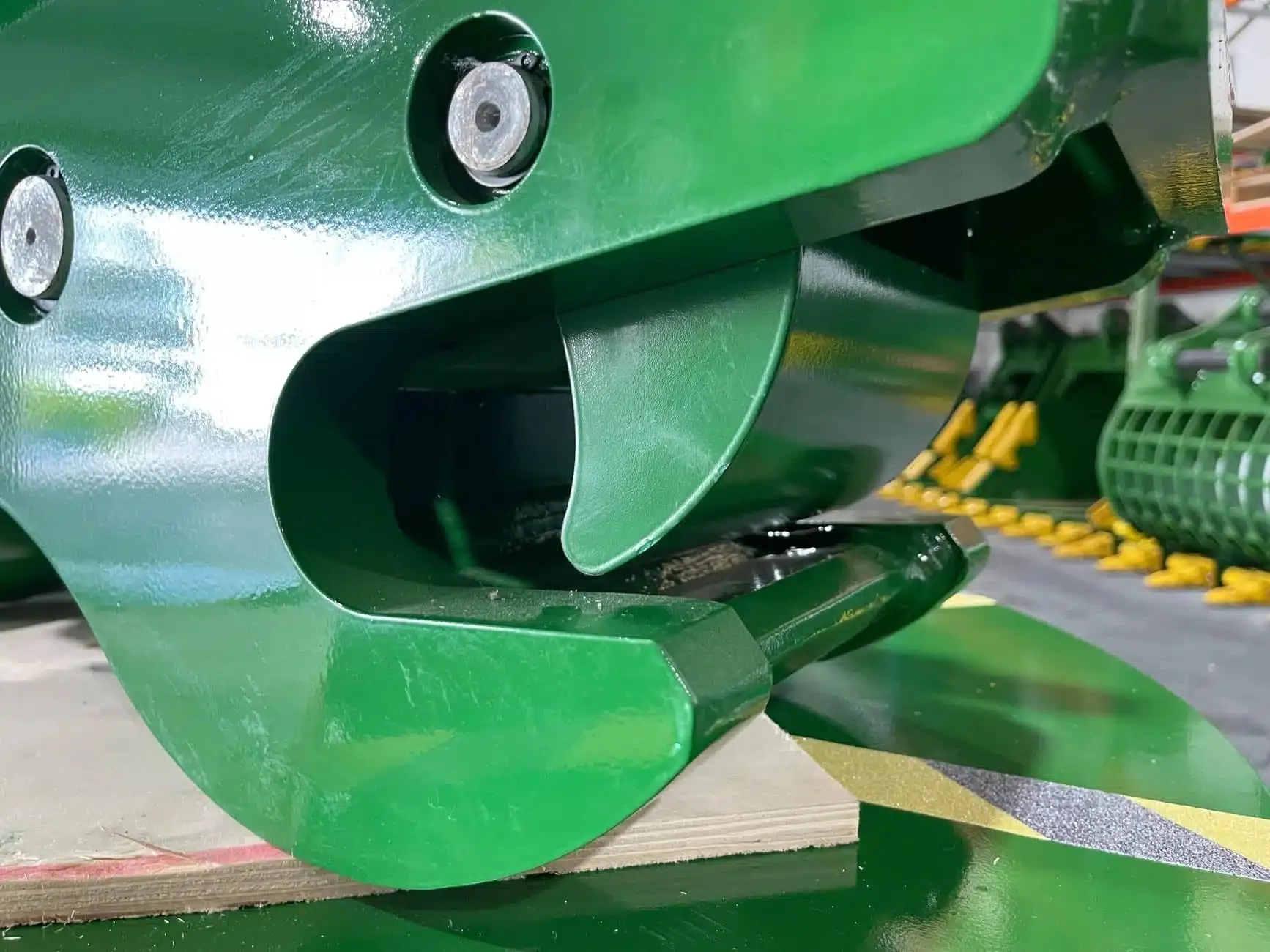

JMA Attachments Dual Lock Hydraulic Quick Coupler | Pin Size 70mm | For 15 – 18 Tons Excavators
Description
Elevate your Excavator's capabilities with the Variable Dual Lock Hydraulic Quick Coupler for 15 - 18 Tons Excavators. 70mm Pins. This isn't just a quick coupler; it's your partner in creating more efficient and profitable excavation projects.
Key Features
- Speed Virtuoso: Change attachments in seconds, reducing downtime and increasing overall project efficiency.
- Engineered for Endurance: AR400 Steel construction ensures this coupler can handle whatever your job site throws at it, day after day.
- Versatility Supreme: Compatible with 30,000 - 36,000 lbs class machines, expanding your Excavator's range of applications.
- Safety Assurance: Dual locking mechanism provides unparalleled attachment security in all working conditions.
- Precision Fit: Designed for 70 mm pins, ensuring seamless integration with your existing attachment inventory.
Detailed Specifications
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Accessories Included | Installation Kit |
| Front Pin Diameter (mm) | 70 mm |
| Rear Pin Diameter (mm) | 70 mm |
| Front Ear to Ear Distance (mm) | 283 mm |
| Rear Ear to Ear Distance (mm) | 283 mm |
| Center to Center Distance (mm) | 464 mm |
| Front Pin Length (mm) | 449 mm |
| Rear Pin Length (mm) | 449 mm |
| Carrier Weight Class (tn) | 15 - 18 Tons |
| Carrier Weight Class (lbs) | 30,000 - 36,000 lbs |
Fits To
|
Brand |
Model |
|---|---|
| Caterpillar | 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317 |
| Hyundai | R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC |
| Kato | 700SEV2, HD700SE, HD700V2, HD700, 900 |
| Kobelco | SK170LC-8 |
| Komatsu | PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150 |
| Liebherr | 922 |
| Samsung | SE130LC |
| Sumitomo | LS2800FJ, S2800FJ |
| Volvo | EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170 |
